    Automatic Reverse Twist Hexagonal Wire Netting Machine With Max Mesh 3300mm

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-3000
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 30 days after receiving deposit or L/C.
    Payment Terms : D/A, D/P, T/T, L/C, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Automatic Reverse Twist Hexagonal Wire Netting Machine With Max Mesh 3300mm

    Automatic Reverse Twist Hexagonal Wire Netting Machine Max Mesh 3300mm For Fish


    Our factory is specilized in producing kinds of wire mesh machine, our machine export to many countries, and because of our high quality and good after-sale service, we have many old customers.


    Our straight and reverse twisted hexagonal wire mesh machine


    1. Based on the principle of straight and reverse twisted method , it is unnecessary to make wire spring form to work , so the production increased a lot.


    2. Include main machine and auxiliary machine: spool winding machine.


    3. The machine have adopted automatic stop system, when meet broken wires or broken mesh it will stop automatically.


    4. Concentrate lubricating system, simply operate and for machine maintain.


    5. The machine have a electronic counter, the machine will stop when it reach the length of you set up.


    6. Within the scope of mesh width, you can choose mesh width freely ,such as if the mesh size is 2.5m,you can produce 2 mesh size 1m at the same time.

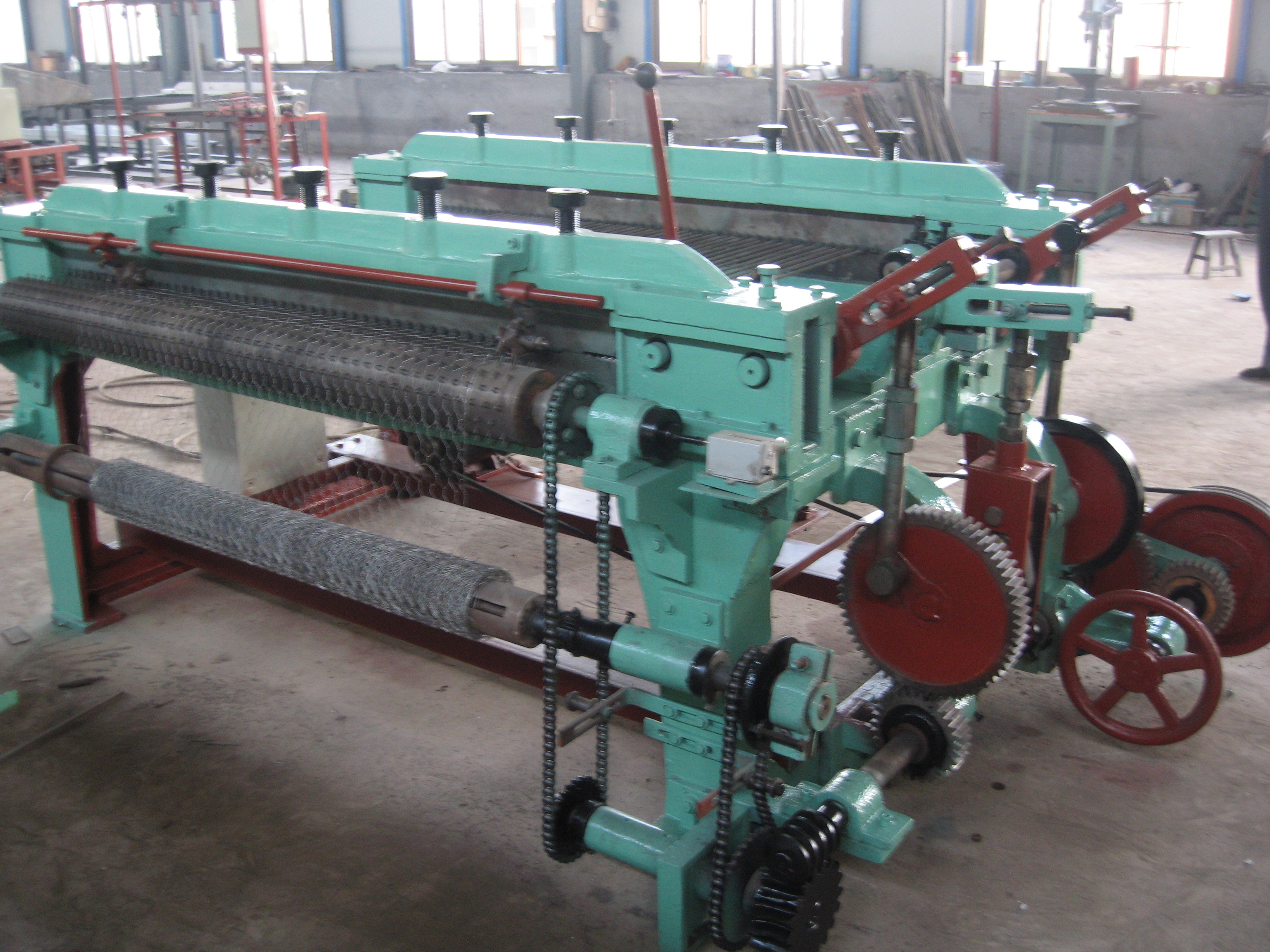

    Main machine


    1. Normal twisted type


    TypesWidth(mm)Mesh (inch)Diameter (mm)Number of twistWeight (T)

    Power

    KW

    MLG151200--22001/2≤0.63-52.52.2
    MLG201200--22003/4≤0.83-52.52.2
    MLG181200--22005/8≤0.73-52.52.2
    MLG251200--22001≤0.93-52.53.0
    MLG401200--22001.5≤1.03-52.53.0
    MLG501200--22002≤1.63-52.53.0
    MLG601200--22002.5≤1.83-52.5

    3.0



    2. Positive and Negative Hexagonal Wire Netting Machine


    ModelMesh sizeMax net width (mm)max wire diameter(mm)theoretical productivitydimension(mm)weight(T)
    singledoublemesh/minm2/h
    ZJ1/21/2inch249012000.7538504500X2200X14504.6
    ZJ3/43/4inch249012001.038624500X2200X14504.6
    ZJ11inch249012001.238664500X2200X14504.6
    ZJ1.21/2inches249012001.238994500X2200X14504.6
    ZJ1.51inch249012001.4381314500X2200X14504.6
    ZJ22cines249012001.6381694500X2200X14504.6
    ZJ33inches249012001.8381694500X2200X14504.6


    Accessoroes


    1 Pyaoffd wire stand

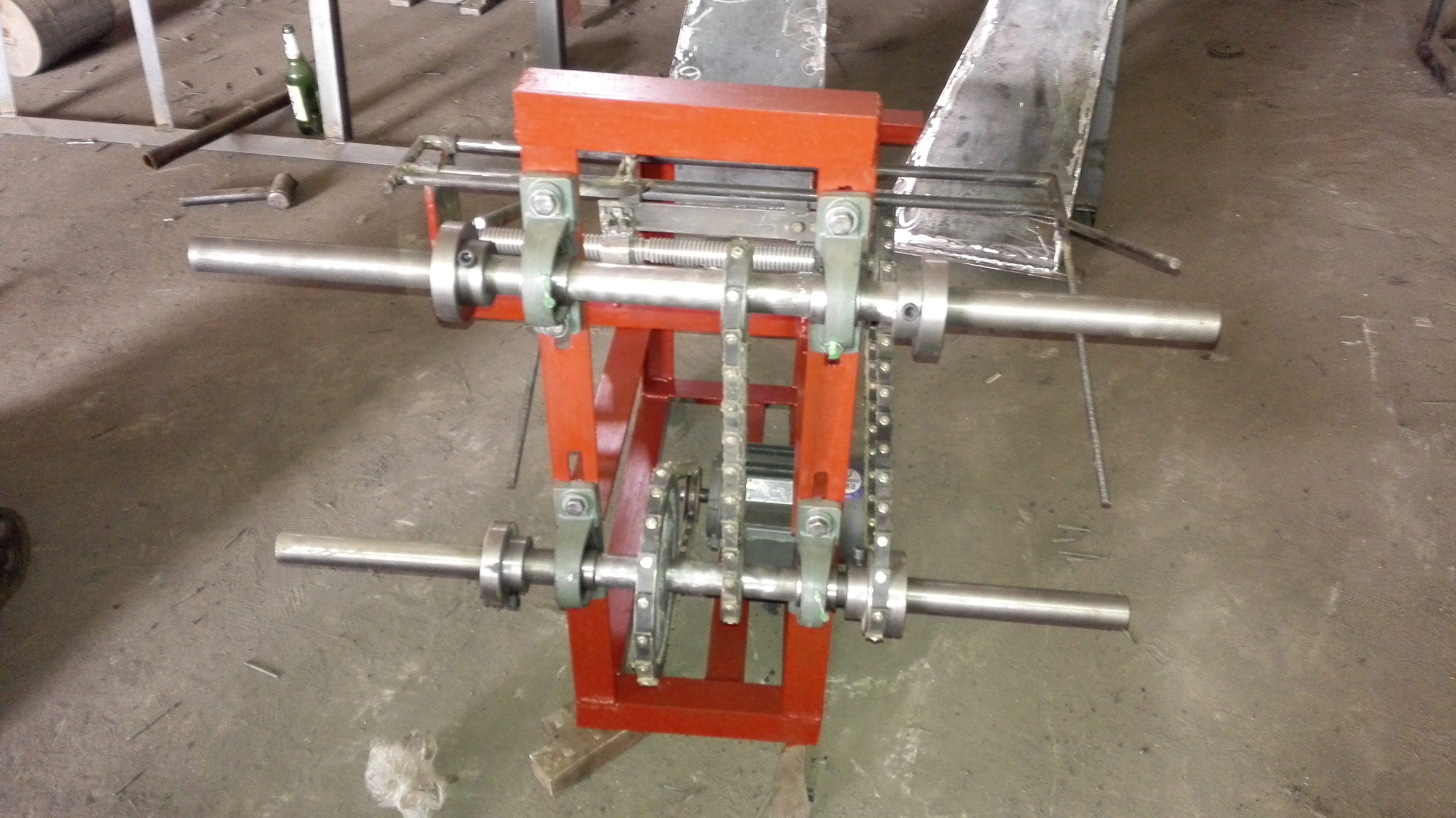

    2 Spring machine
