Fully Automatic Steel Grating Production Line Made in Hebei

Description of the Steel grating welding machine line

This steel grating welding machine line is comprised of gantry type welding machine, double-layer flat steel feeding device, cross bar auto falling device, steel grating hauling device, hydraulic & pneumatic system, CNC control system, etc.

Raw materials Steel grating welding machine line

2.1 Suitable material: hot-rolled steel or cold-rolled steel.

2.2 Bearing flat bar: slitted strips, width 25-75mm, thickness 2.5-6.5mm

2.3 Cross bar: round bar or twisted square bar, 5mm, 8mm (diameter of round bar or side length of square bar, cross section is usually not less than 20mm2)

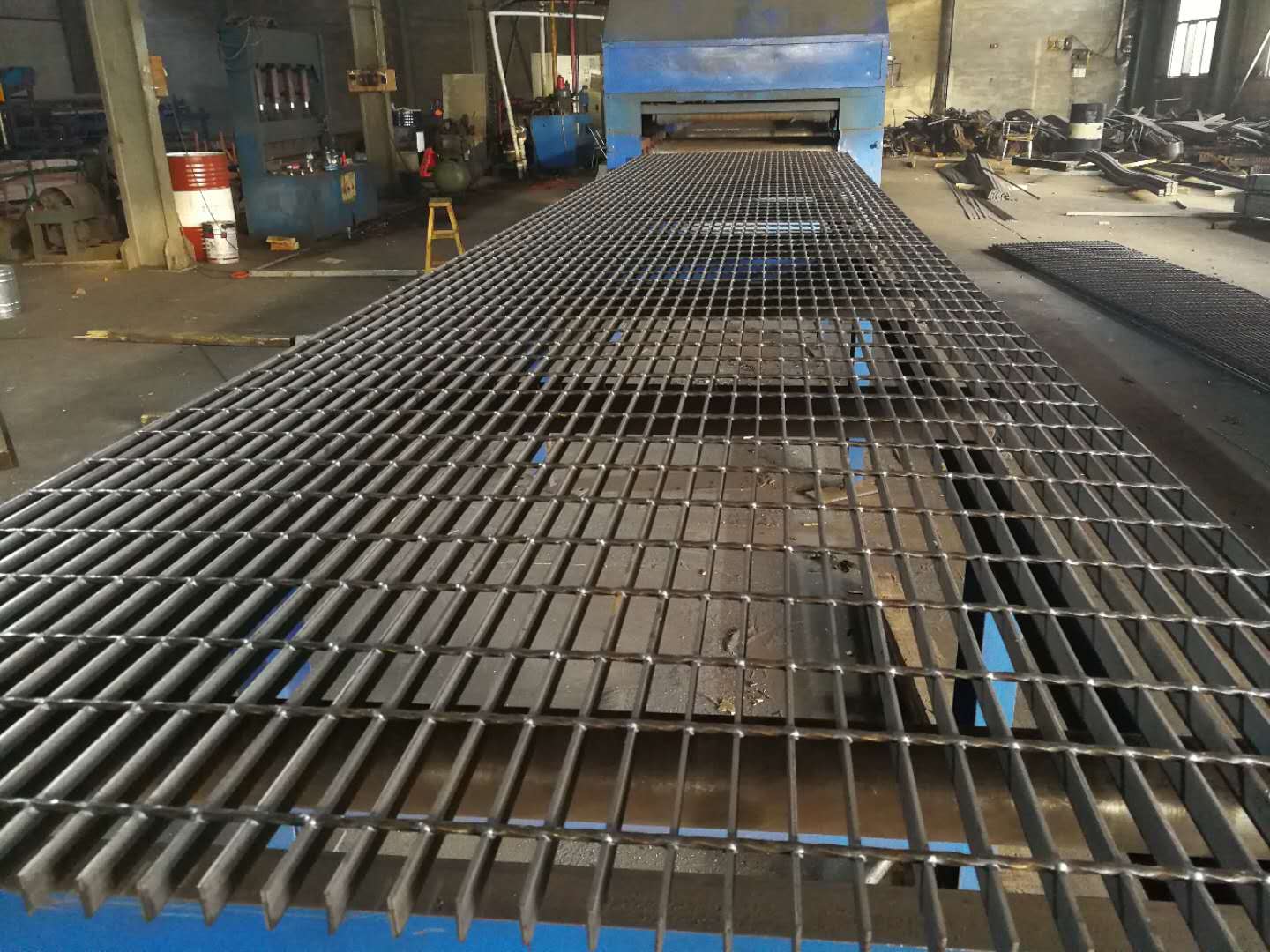

Finished steel gratings Steel grating welding machine line

3.1 Size of finished gratings: max. 1000 x 6000mm (W x L)

3.2 Space between flat bars: 30-80mm (adjustable)

3.3 Space between cross bars: 50-100mm (adjustable)

Technical data of the welding machine Steel grating welding machine line

4.1 Electric supply: 3 phase, 380V, 50Hz

4.2 Rated power: 250KVA ×8

4.3 Transformer needed: ≥1200KVA

4.4 Rated current: 2500A

4.5 Flux of cool-water: 500L/min

4.6 Max. pressure for welding:125T(adjustable)

4.7 compressed air: 0.63MPa

Applications;

The steel plate is suitable for alloy, building materials, power station, boiler.Shipbuilding.Petrochemical, chemical industry and general industrial plant, municipal construction and other industries, with ventilation and light, anti-slip, bearing capacity, beautiful and durable, easy to clean, easy to install and other advantages.Steel plate has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor, railway bridge service, high tower platform, the drain cover, manhole covers, road barrier, three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway, rail barrier, etc.
