Mitsubishi PLC Automatic Steel Grating Welding Machine For City Gutterway

Brief introduction:

Automatic steel plate resistance welding machine is a concentration of electric, hydraulic, resistance welding, machinery, etc., as one of the large welding equipment.With compact structure, welding strong function, high degree of automation, product quality, convenient operation and maintenance, strong productivity, etc.Intermediate frequency welder frequency is 1000 hz, large output current density.The secondary loop output impedance is small, welding current, low dissipation electrodes directly connected to the rectifier circuit, greatly saves the energy required during welding.

1. The machine include below: flat rack, hydraulic mold, servo stepper institutions, medium frequency transformer, host, intermediate frequency welding controller, control system.

2. Bonding host equipment structure, function and characteristics.

01, Twisted steel artificial planted, automatic into the material.

02, Flat steel manual locate

03, Automatic welding.

04, Before and after automatic distance control table.

05, Equipment parameter setting, using intelligent digital display.

06,Equipment, manual and automatic control.Operators can overcome the welding process changes brought about by the adverse factor, the operation is simple and convenient.

07, New design of the structure of a 200 kva transformer can production, to achieve the requirement of the pressure welding.Compared to large welding machine with 800 KVA transformer small investment.

3. The microcomputer controller

Products in Chinese liquid crystal microcomputer controller, the stable welding current, ensure the solder joints of beautiful, strong fastness.

4. In circulating cooling water system

The cooling circulating water with high water or water temperature automatic alarm., keep water temperature is less than 30 degrees, pure quality, so as not to reduce leakage and cooling water plugging.

Advanced unit

1) Control system : intelligent PLC(Mitsubishi or Panasonic)

2) Touch screen: Weinview (Taiwan)

3) Low-voltage apparatus :Schneider

4) Pneumatic components:Japan SMC, more stable

5) Cross wire feeding step hopper :equipped with feeding car

6) Mesh pulling :servo motor (Mitsubishi or Panasonic)

Technical parameter

Applications;

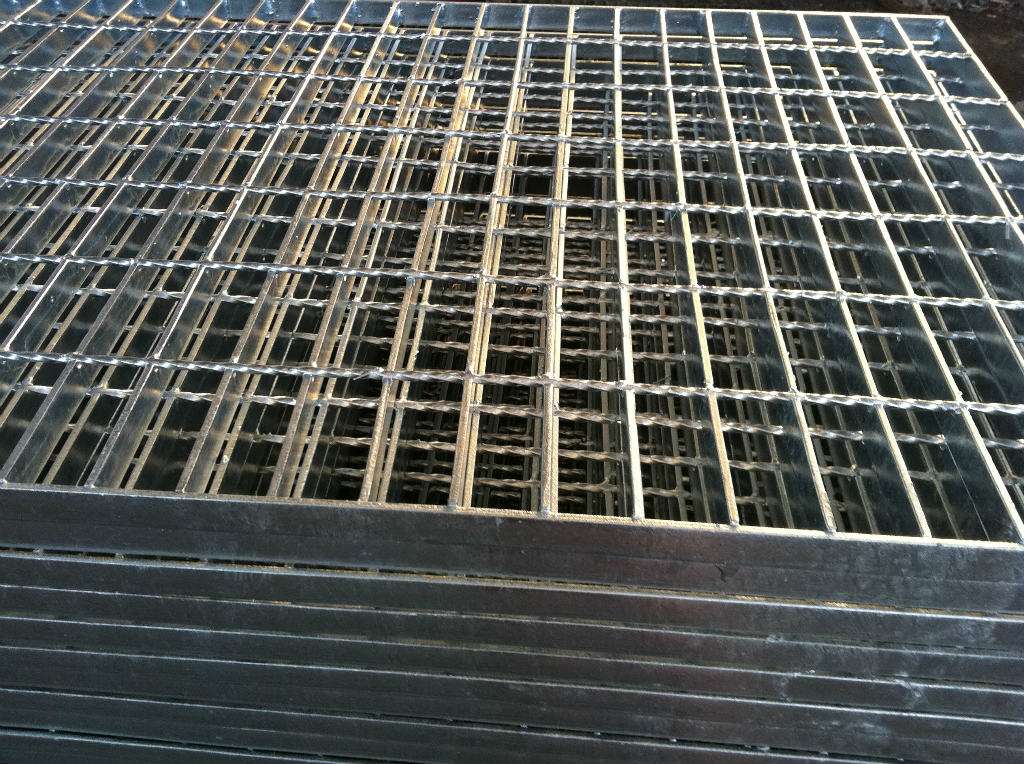

Steel plate and grid board, widely used in petroleum chemical industry, power plant, water plant, sewage treatment works, municipal engineering, environmental sanitation projects in the areas of platform, walkway, pier, trench cover, manhole covers, ladders, fences, guardrail, etc.We have a wide variety of steel grid products, which can be designed and manufactured by customers according to the different environment, different bearing capacity, span, shape and color, and cost cost.All products are purchased from raw materials, manufactured and finished products inspected until the market is put into the market. All products are strictly regulated in accordance with the advanced specifications, so that the steel grid can reach quality and quality.

Its characteristics are:

1. High strength: solid grid pressure welding structure has high bearing capacity;

2. Light structure: convenient for hoisting and other characteristics;

3. The appearance is beautiful and durable: hot dip zinc surface treatment makes it have good anti-corrosion ability, the surface gloss is beautiful;

4. Ventilation, lighting, heat dissipation, explosion-proof, anti-skid performance;

5. Antistasis.

Auxiliary machin

Anping Molonggang Spot Welding Equipment Company Limited, founded in 1990 located in Anping County--the biggest hometown of wire mesh in China. Molonggang is a professional comprehensive enterprise integrating manufacture, marketing, and exporting and importing trade of wire mesh products.

We are a professional factory that manufactures all kinds of wire mesh machines. With having first- class wire mesh machines, scientific technology and quality inspection system to ensure the quality of our wire mesh products. We manufacture for: Automatic welded  mesh  welding machine, automatic concrete reinforcing mesh welding machine, full automatic chain link fence machine, full automatic welded wire mesh machine, hexagonal wire netting machine. Expanded metal mesh machine, field fence machine and so on. We can manufacture complete product design, part working and machine assemble, strong technical strengthen and immediate service can meet customer’s need.

Automatic welded mesh welding machine

Automatic concrete reinforcing mesh welding machine

Full automatic welded wire mesh machine

Full automatic chain link fence machine

Our factory seeks existence by quality and development by reputation. We have more than 10 researchers with high skills; the product by our machine has various kinds and high quality. We can manufacture different specifications according to the clients’ demand. So far, we have established long-term business relationship with Russian, Iran, Vietnam，Jordan, Saudi Arabia,Oman, Nigeria, Indonesia,Philippines and other countries and areas. Get a high reputation.

We pay attention to communicating with customers actively. To get to know the customers’ demand and offer excellent service, we sincerely expect to establish friendly business relationship with the customers from all over the world.
