    Industrial Fence Panel Making Machine , Fully Automatic Wire Mesh Machine

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-2500
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 30 days after receiving deposit or L/C.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

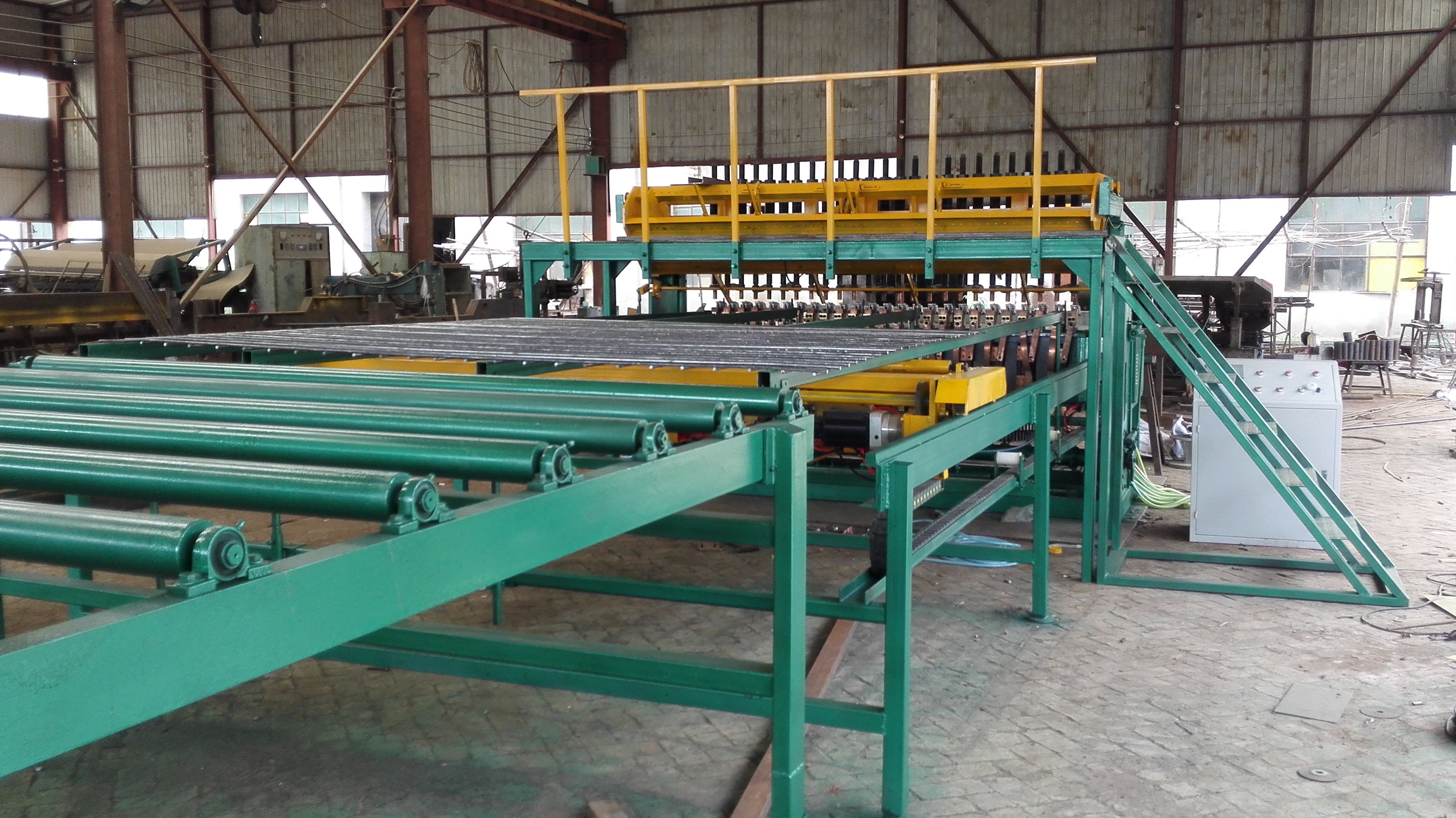

    Industrial Fence Panel Making Machine , Fully Automatic Wire Mesh Machine

    Automatic Galvanized Wire Mesh Welding Machine For Fence Panel Factory Price


    Electric Welded Wire Mesh Machine


    Technical Parameters


    ModelMLG-DNW-1MLG-DNW-2MLG-DNW-3
    Wire diameter0.4-0.65mm0.65-1.2/1.8mm1.0-2.2mm
    Aperture/pitch1/4”-1/2”1/2”-4”1”-4”
    Mesh width3 feet, 4feet4 feet, 5 feet4 feet, 5 feet, 6 feet, 7feet
    Motor2.2kw2.2kw2.2kw;4.0kw
    Welding speedMax. 75 rows/minMax. 120 rows/minMax. 80 rows/min
    Measurement2.3*1.3*1.4m2.5/2.9*1.3*1.4m2.5/2.9*1.3*1.4m
    Weight1.5T2T, 2.5T2T, 2.5T, 3T, 3.5T
    Transformers50kva*360kva*4;60kva*560kva*4/5/6/7

    CNC Wire Mesh Welding Machine


    Technical Parameters

    ModelMLG-FP-2500AWire diameter2.5-6mm/3-8mm
    Line wire space50-300mmCross wire space25-300mm
    Width of meshMax.2.5mLength of meshMax.6m
    Welding electrodes48 pcsWelding speed50-75 times/min
    Rated electrical power85kva*6pcsWire feed wayPre-straightened&pre-cut
    Weight4.2TOverall size5.4m*3.1*1.7m

    Automatic Wire Mesh Welding Machine



    Technical Parameters

    ModelMLG-FP-2500B/BNWire diameter3-5mm/2.5-6mm
    Line wire space50-300mmCross wire space25-300mm
    Width of meshMax.2.5mWelding speed45 times/min
    Welding electrodes48 pcsLongitude wire feedWire coils
    Rated electrical power125kva*6pcsCross wire feedPre-straightened&pre-cut
    Weight4.5TOverall size18*2.9*1.7m

    Concrete Reinforcing Mesh Welding Machine


    Technical Parameters

    ModelMLG-GW-2500AWire diameter5-12mm/4-10mm
    Line wire space100-300mmCross wire space50-300mm
    Width of meshMax.2.5mLength of meshMax.12m
    Welding electrodes24 pcsWelding speed45-65 times/min
    Rated electrical power100kva*12pcsWire feed wayPre-straightened&pre-cut
    Weight6.5TOverall size20*3.2*2.3m

    Best Technologies

    Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.

    Schneider (France) low-voltage apparatus. Delta (Taiwan) variable-frequency drive.

    Panasonic (Japan) servo motor or step motor for pulling mesh, big power, high precision.

    Brake clutch motor and reducer connect the principal axis directly, high stability, big power.

    Casting water-cooling transformers, high efficiency.


    Best After-sales Service
    1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
    2. Within guarantee time, if any components are broken under normal condition, we can change for free.
    3. We can send our best technician to buyer’s factory for installation, debugging and training.
    4. Complete installation instructions, circuit diagram, manual operations and machine layout.
    5. Timely reply for your machine questions.
