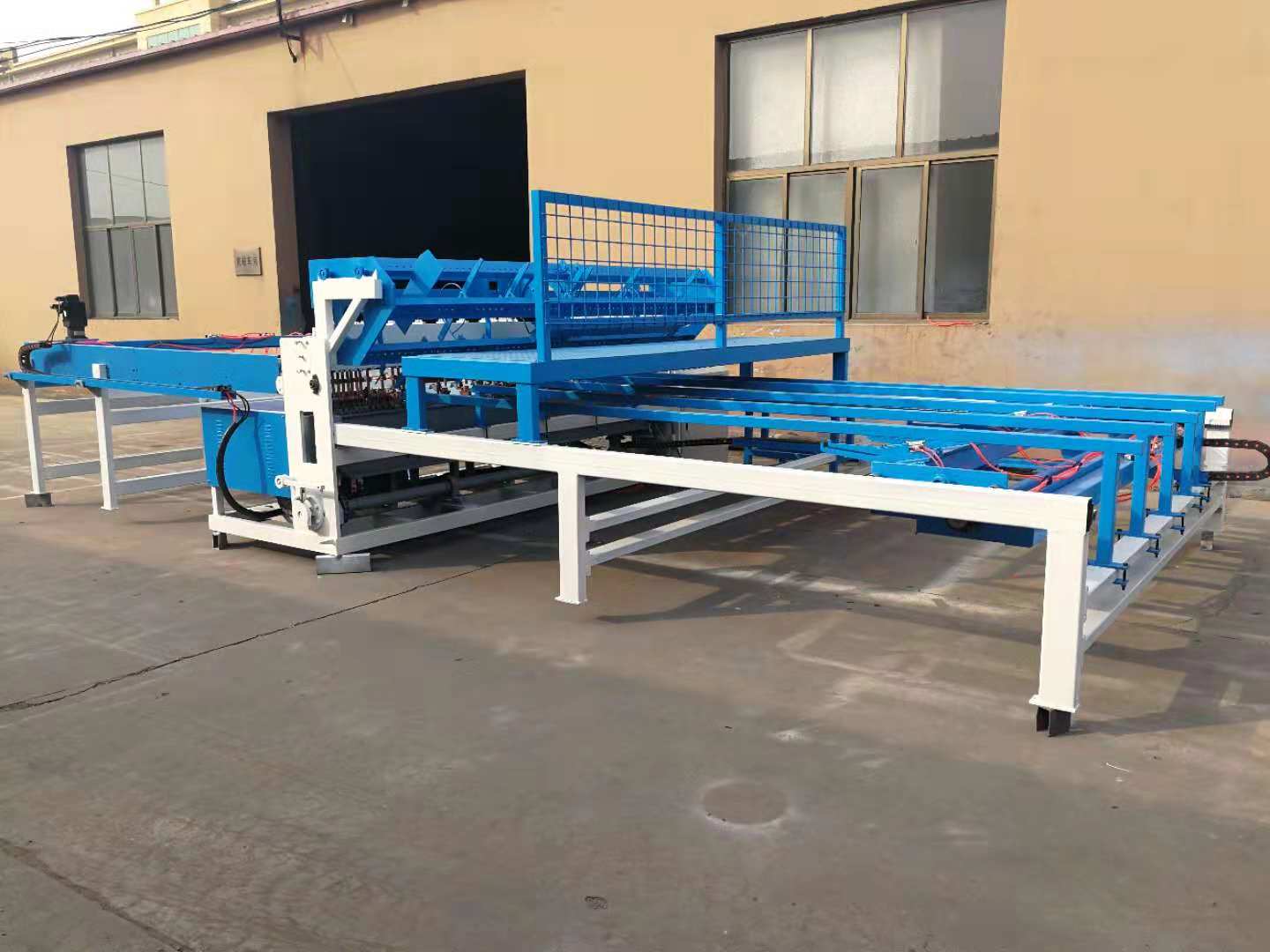

Factory Price Welded Mesh Panel Welding Equipment For Mesh 50x200mm

Product descroption

1. This machine adopts synchronous control technique. The center-control and welding time are composed of Panasonic PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.

The cross wire will be fed automatically with the help of a stepper motor. Falling wire automatically. The machine stops automatically if cross wires are used up in the hopper.

3. Adjustable longitude wire space and cross wire space.The line wire and the cross wire are pre-straightened and pre-cut. The greatest advantage is that you can adjust the distance of cross wire at random on the same one mesh panel.For example, 50x100, 50x150, 50x200, 50x250, 50x300 in one mesh panel.

4. Mesh pulling system is controlled by servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.

5. The welding transformer is working one by one. Not working together.Welding pressure Adjustable by springs.

6. The new machine adopts an integrated water-cooled transformer, whose voltage is 125 KVA. The welding transformer is water-cooling.

7. The welded mesh panel welding equipment equips 8 pcs welding transformer. each transformer is 125KVA.

8. Welding time and welding current are regulated separately. It is easy to establish when the diameter of the wire is changed.

9. The power transformer must be at least 120KVA, and the maximum distance between the power transformer and the machine must be 80 m.

10. Material:Suitable for low carbon iron wire, ribbed wire, cold drawn wire,or galvanized (cold galvanized, hot galvanized) processing.

Technical parameter

Anping Molonggang Spot Welding Equipment Company Limited, founded in 1990 located in Anping County--the biggest hometown of wire mesh in China. Molonggang is a professional comprehensive enterprise integrating manufacture, marketing, and exporting and importing trade of wire mesh products.

We are a professional factory that manufactures all kinds of wire mesh machines. With having first- class wire mesh machines, scientific technology and quality inspection system to ensure the quality of our wire mesh products. We manufacture for: Automatic welded  mesh  welding machine, automatic concrete reinforcing mesh welding machine, full automatic chain link fence machine, full automatic welded wire mesh machine, hexagonal wire netting machine. Expanded metal mesh machine, field fence machine and so on. We can manufacture complete product design, part working and machine assemble, strong technical strengthen and immediate service can meet customer’s need.

Automatic welded mesh welding machine

Automatic concrete reinforcing mesh welding machine

Full automatic welded wire mesh machine

Full automatic chain link fence machine

Our factory seeks existence by quality and development by reputation. We have more than 10 researchers with high skills; the product by our machine has various kinds and high quality. We can manufacture different specifications according to the clients’ demand. So far, we have established long-term business relationship with Russian, Iran, Vietnam，Jordan, Saudi Arabia,Oman, Nigeria, Indonesia,Philippines and other countries and areas. Get a high reputation.

We pay attention to communicating with customers actively. To get to know the customers’ demand and offer excellent service, we sincerely expect to establish friendly business relationship with the customers from all over the world.
