    Line Wire From Coil Welded Mesh Panel Welding Equipment For Mesh Size 50x50mm

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-WHJ-1500A
    Certification : CE ISO
    Supply Ability : 8 sets per month
    Delivery Time : 25 days
    • Product Details
    • Company Profile

    Line Wire From Coil Welded Mesh Panel Welding Equipment For Mesh Size 50x50mm

    Line Wire From Coil Welded Mesh Panel Welding Equipment For Mesh Size 50x50mm


    Product description;


    1. Feeding system

    weft feeding method:automatically straightening cutting machine straighten and cut steel well before welded into wefts blanking systems, welfs falling automatically in welding process

    warp feeding method:coil wire were put on the respective position,inserting one side of the coil wire into through-hole solder wire mesh machine,then the entire welding process is automatically feeding.

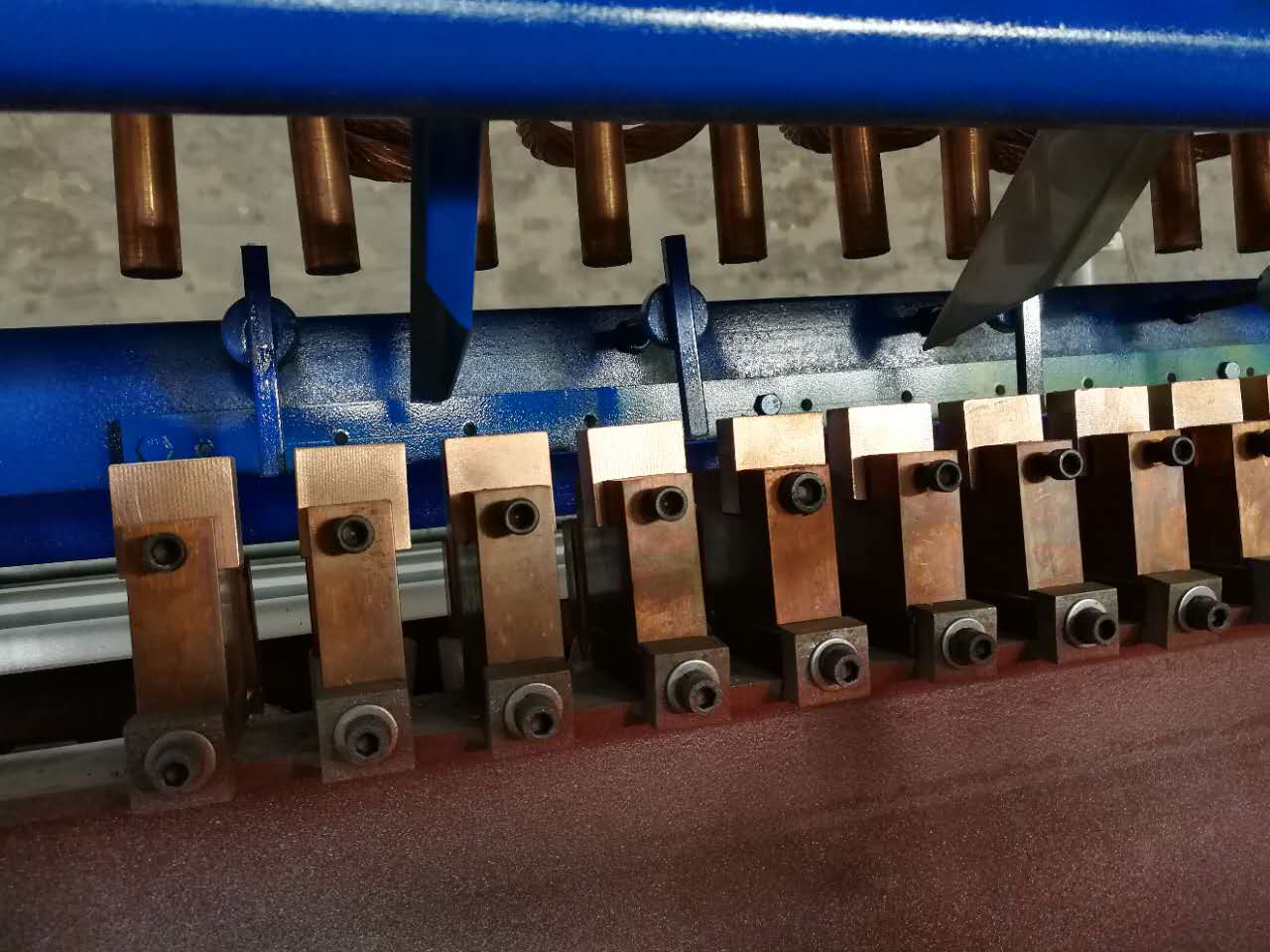

    2. Welding system

    The welding machine adopts synchronous control technique both welding time and cent-control welding are used in Japanese panasonic digital control system. Inputting on the touch screen control panel directly can adjust the mesh size,and also can weld different size of mesh on the same wire mesh sheet between weft and weft.


    3.Pulling mesh system

    Japan panasonic servo motor control whole automatic hauling wire mesh system


    4. Automatic wire mesh cutting system

    In advance,according requirement sets the length of mesh sheet by cutting machine,afterautomatically cut mesh operating.


    Technical parameter;


    Technical itemsparameters MLG-WHJ-1500wire diameter2.5-5.5mm
    Cross wire space50-200mmLine wire space50-200mm
    Number of electrodes24Max mesh width1500 mm
    Electricity capacity3*125kvaWelding speed40-60times/min
    Weight2.5TOverall dimension1900*2300*1400mm
    Cross wire formpre-cut wireLine wire formcoil wire
