    Automatic Chain Making Machine , Diamond Mesh Fencing Machine For PVC Coating Wire

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-3000
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 30 days after receiving deposit or L/C.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

    Automatic Chain Making Machine , Diamond Mesh Fencing Machine For PVC Coating Wire

    PLC Control Diamond Mesh Weaving Machine For PVC Coating Wire


    Technical Description


    Chain link machine for manufacturing chain link fences of different sizes. The wire is taken in from the payoff stand and passed through the dies where the DIAMOND SIZE takes place. Different gap sizes. After passing from the die the diamond pattern wire is automatically thrown on the winding shaft in the stitching process. Once the stitching is complete the woven is manually glided down to enable the next stitch to take place.

    The chain link is automatically wound to form rolls when the desired length is manufactured.

    The machine is controlled by PLC automatic controller, so only one person is needed to operate it.

    One side or both sides of the end of net hole is twisted or with burr in edge.

    Use compacting machine to make it into rolls.


    Electric System:

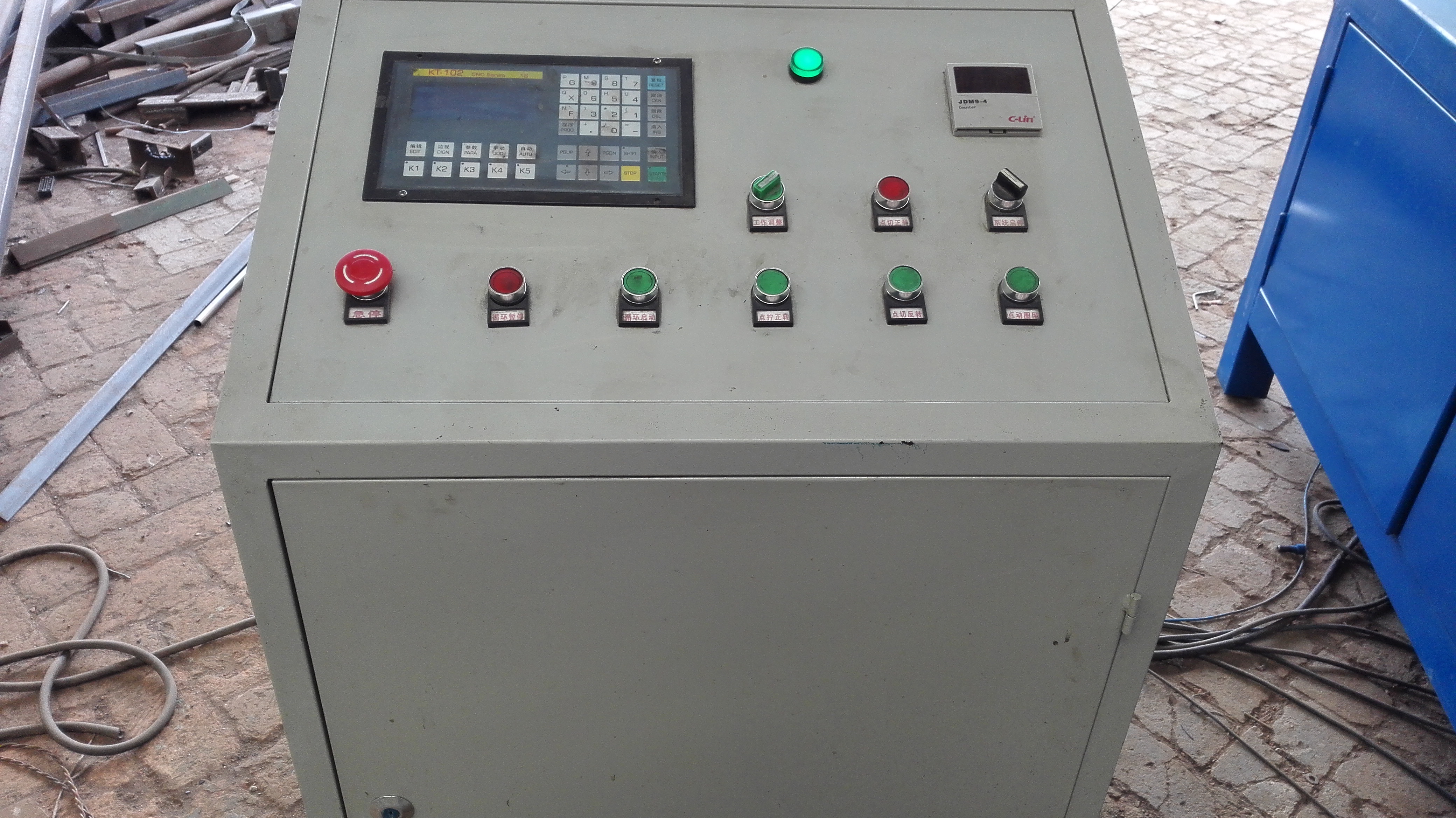

    The machine is controlled by PLC automatic controller

    Germany Siemens PLC origin

    The inverter is selected from high quality products

    Of Japan”YASKAWA”

    Electrical

    Low-voltage electrical from Germany Schneider

    Electric&Machinery from Taiwan Teco Electric

    Clutch from Taiwan YA CO,.LTD.


    Suitable wire to the machine:


    High-quality low-carbon steel wire ,Galvanized steel wire ,Stainless steel wire ,Aluminum alloy wire,Aluminum-clad steel wire.


    Function:


    Chain Link Fencing is extensively used as fences for playground and gardens,super highway,railway,airport,port,residence,etc.


    Technical parameter


    Capacity60-120(m2/hour)
    Wire Diameter1.5-4mmFeeding Wire Numbers: one
    (Note: Steel Wire Standard: GB3081-82 YB544-65; Material Standard: B1F-B3F
    Size of Mesh20x20-100X100(mm)
    Netting Width600-4000(mm)
    Power and Rated voltage6.0KW 380V,50HZ
    Dimensions

    3700*850* 1600mm

    3500*1000* 1500mm
    2800*1400*1400mm



    Our Services

    1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
    2. Within guarantee time, if any components are broken under normal condition, we can change for free.
    3. We can send our best technician to buyer’s factory for installation, debugging and training.
    4. Complete installation instructions, circuit diagram, manual operations and machine layout.
    5. Timely reply for your machine questions.

    6. Main machine packed by stretch film, PLC cabinet packed by air bubble film, spare parts loaded in to box.


    Company Information

    ♦Anping Molonggang Spot Welding Equipment Co., Ltd. is a professional manufacturer and exporter integrating the design, development and production of wire meshmachines for Breed aquatics mesh welding machine, CNC fence mesh welding machine, Reinforcing mesh welding machine, brick force mesh machine, welded wire mesh machine,building mesh machine,mine supporting mesh welding machine and automatic chain link fence machine, hexagonal wire mesh machine, expanded metal machine, roll forming machine, Automatic Concrete Reinforced Mesh Welding Machine/Welded Steel Bar Mesh Machine and so on.
