    Width 2500mm Full Automatic Wire Mesh Welding Machine For Fencing Panel

    Ask Lasest Price
    Brand Name : MLG
    Model Number : MLG-2500
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 20 days after receiving deposit or L/C.
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

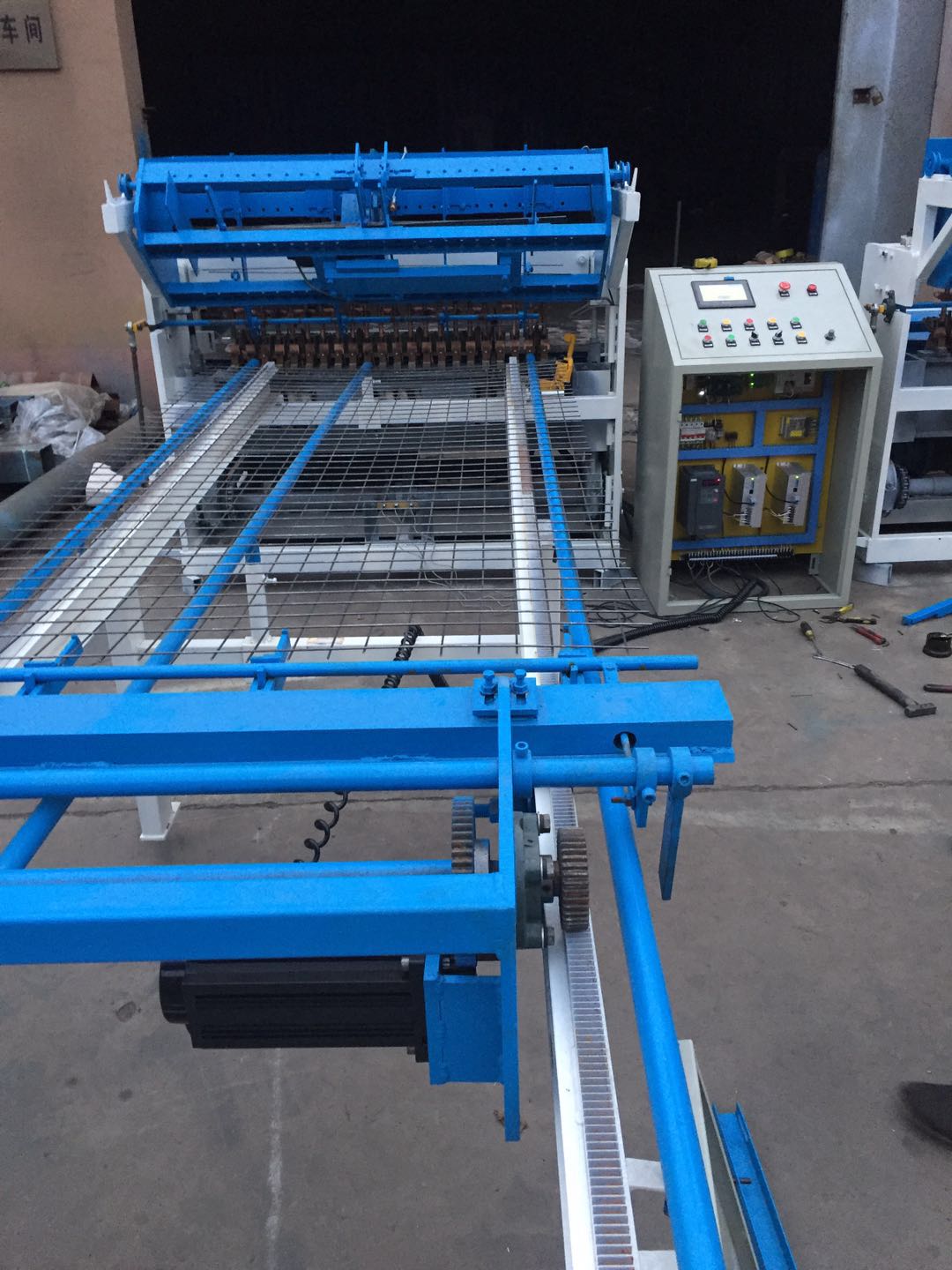

    Width 2500mm Full Automatic Wire Mesh Welding Machine For Fencing Panel


    Width 2500mm Full Automatic Wire Mesh Panel Welding Equipment For Fencing panel


    Product description


    1. This kind of wire mesh welding machine is our latest developed reinforcing mesh welding machine.


    2.The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.


    3.The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.


    4.The wire mesh welding machine welding power comes from the cylinders. It’s easy to control the welding pressure .


    5.The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.


    6.The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .


    7.The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.


    8.This wire mesh welding machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.


    Main parameters-- Automatic Mesh Welding Machine/fence Mesh welded Machine


    Wire diameter2.5~6.0mmLine wire formpre-cut wire
    Weft wire distanceMini 12.5mmWeft wire formpre-cut wire
    Line wire distance50~300mmRated voltage380V 50Hz
    Welding net width2500mmRated power6*125KVA
    Welding speed60times/minOverall dimention9*3.2*1.7m
    Line wire No.48PCSWire net length6000mm
