    Steel Iron Fence Mesh Welding Machine PLC Control For Fencing Construction

    Ask Lasest Price
    Brand Name : MLG
    Model Number : WHJ-2500
    Certification : CE
    Supply Ability : 4--5 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Steel Iron Fence Mesh Welding Machine PLC Control For Fencing Construction

    Best price Steel Iron Fence Grid Welding Machine For Fencing


    Features for wire mesh fence making Machine

    Feeding material:


    The warp wire and weft wire are straightened and cuted from coil wire material ,realized by auto straightening and cutting machine.

    The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one ,from the weft wire system

    Welding mesh panel system:


    The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Panasonic ( Japan ) PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet

    Drawing mesh panel system:


    Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.


    Main parameters
    NameParamentUnit
    Wire diameter3-6mm
    Width of mesh2500mm
    Weft Wire Distance50-200mm
    Warp Wire Distance50-200mm
    welded points48points
    Welding frequency40-60times/min
    Weight4.5ton
    Rated capacity6*160kva
    Rated voltage220/380/440V
    Need Worker2-3person
    Warp WirePre- cut Wire
    Weft wirePre-cut Wire
    Type of production

    mesh panel


    Applications

    Application materials : welding machine is good at welding various metal wire : stainless steel wire , low carbon steel wire , round steel bar, ribbed steel bar

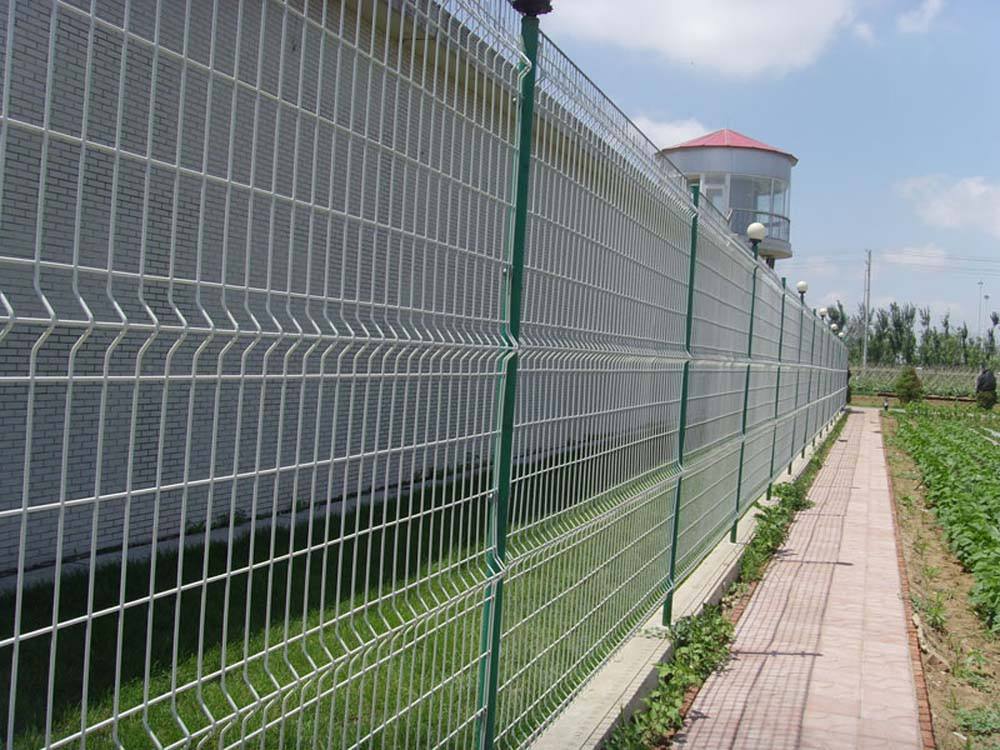

    Application mesh panel : welded mesh panel widely used as welded wire mesh fence panel,school playground fence , 3D wire mesh fence, welded garden fence curve welded fence and construction mesh panels
